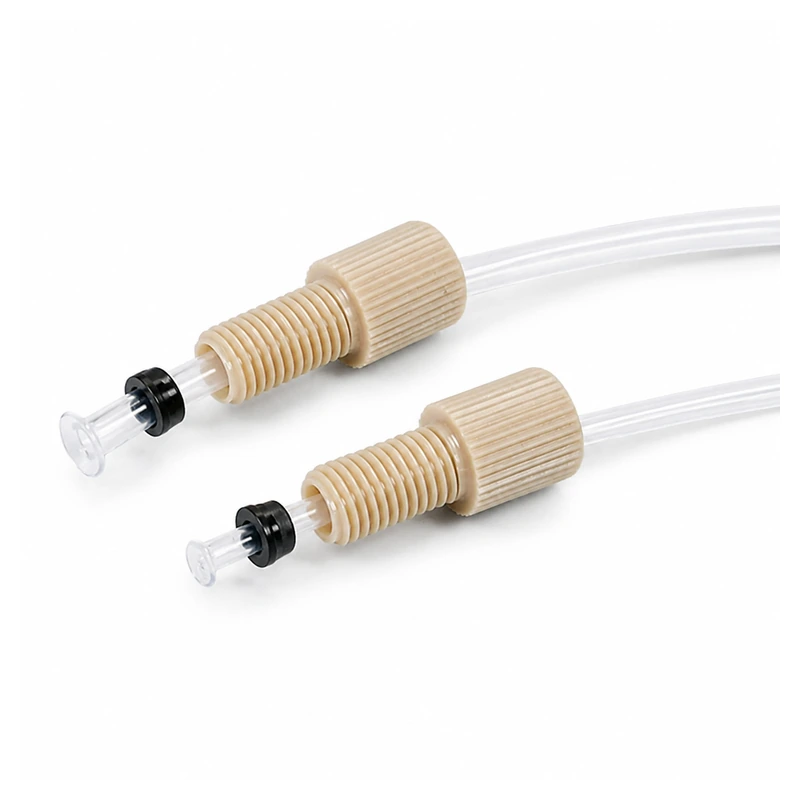

Two RZFLARE06 PEEK quick-flanged fitting assemblies on clear tubing

RZFLARE06 – PEEK Quick Flanged Fittings for HPLC Tubing, Multiple Models

0 out of 5

( There are no reviews yet. )

Price range: $9.58 through $20.83

PEEK Quick Flanged HPLC Fitting for laboratory tubing and HPLC fluid routing.

Connector Model

Clear

Add to wishlist

Description
Size Guide
Additional information
Reviews (0)

Description

Product overview

RZFLARE06 PEEK Quick-Flanged Fittings

RZFLARE06 is a quick-flanged PEEK fitting family for rigid tubing. Available options include 1/4-28 UNF and M6 threaded fitting bodies with retaining clips for stated tubing outside-diameter groups.

The reusable flanged connection does not change the tube bore. Current options include fitting-and-clip sets and selected 0.2, 0.3 and 0.5 m rigid-tube assemblies.

PEEK quick-flanged fitting body
1/4-28 UNF and M6 thread options
Listed tube OD groups from 1.6 to 3.2 mm
Fitting-and-clip or tubing-assembly options

Specifications

Product family	RZFLARE06
Product type	Quick-flanged fitting
Fitting material	PEEK
Threads listed	1/4-28 UNF; M6
Tubing outside diameters listed	1.6; 2.0; 2.5; 3.0/3.2 mm
Current tube lengths	0.2; 0.3; 0.5 m
Retaining component	Clip
Current option count	9

Product Details

Bore-preserving connection

The flanged connection does not change the tubing bore.

Reusable assembly

The fitting may be disassembled repeatedly without affecting sealing.

Two thread families

1/4-28 UNF and M6 fitting bodies are listed.

Multiple tube sizes

Hard-tube OD groups range from 1.6 to 3.2 mm.

Available Configurations

Available model	SKU
FITTING-06B-28-THREAD-CLIP-016	RZFLARE06-FITTING-06B-28-THREAD-CLIP-016
FITTING-06B-28-THREAD-CLIP-020	RZFLARE06-FITTING-06B-28-THREAD-CLIP-020
FITTING-06B-28-THREAD-CLIP-025	RZFLARE06-FITTING-06B-28-THREAD-CLIP-025
FITTING-06B-28-THREAD-CLIP-030-032	RZFLARE06-FITTING-06B-28-THREAD-CLIP-030-032
FITTING-06B-28-THREAD-CLIP-030-032-HARD-TUBE-0.2M	RZFLARE06-FITTING-06B-28-THREAD-CLIP-030-032-HARD-TUBE-0.2M
FITTING-06B-28-THREAD-CLIP-030-032-HARD-TUBE-0.3M	RZFLARE06-FITTING-06B-28-THREAD-CLIP-030-032-HARD-TUBE-0.3M
FITTING-06B-28-THREAD-CLIP-030-032-HARD-TUBE-0.5M	RZFLARE06-FITTING-06B-28-THREAD-CLIP-030-032-HARD-TUBE-0.5M
FITTING-06B-M6-THREAD-CLIP-016	RZFLARE06-FITTING-06B-M6-THREAD-CLIP-016
FITTING-06B-M6-THREAD-CLIP-020	RZFLARE06-FITTING-06B-M6-THREAD-CLIP-020

Applications and Selection Notes

Flanged connection of rigid tubing

Selection note: Select by the complete fitting, thread, clip and tube-size designation. Only the currently available tube lengths are listed in the table.
