HPLC Inline Filter Assemblies, Replacement Frits and Connectors, Multiple Models
Price range: $32.50 through $820.83
Analytical and preparative HPLC inline filter assemblies, replacement metal frits and compatible connectors. Select the filter diameter, pore size and AMLC model required for the fluid path.
- Description
- Size Guide
- Additional information
- Reviews (0)
Description

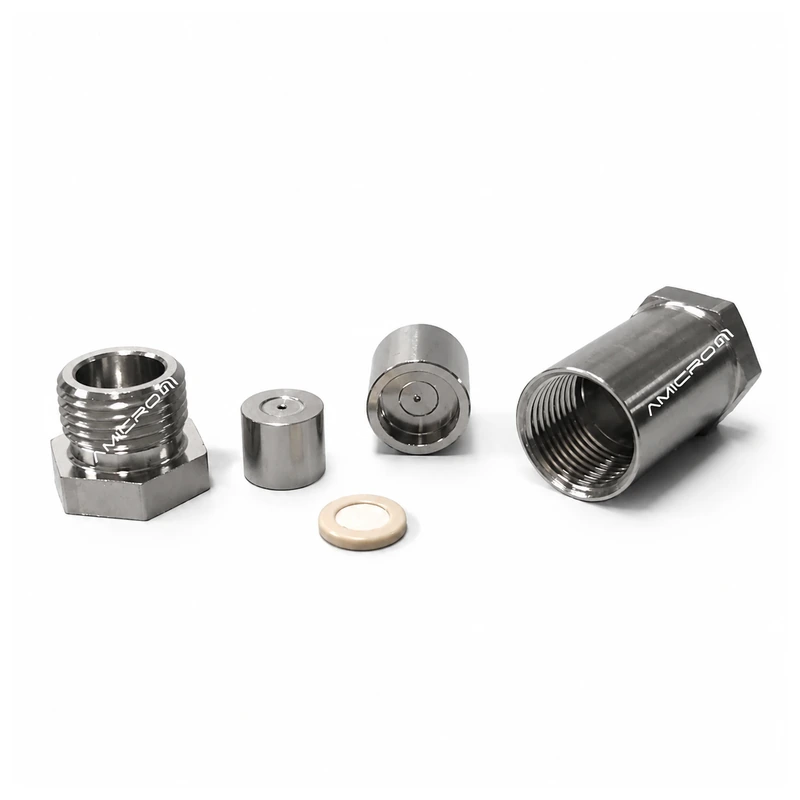

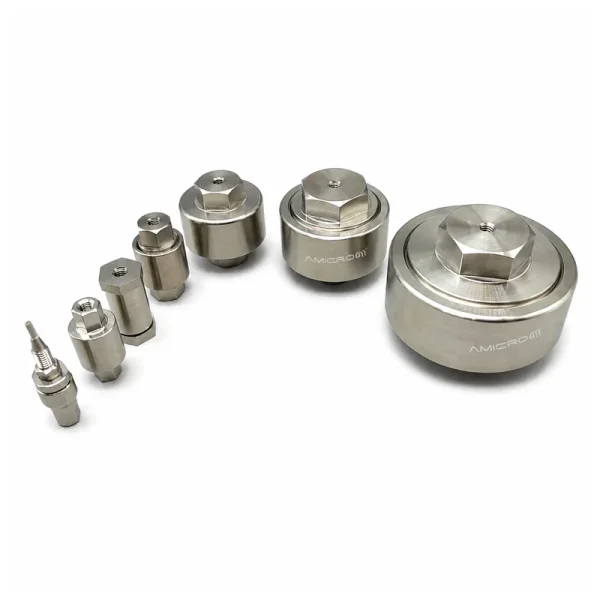

HPLC Inline Filter Assemblies, Replacement Frits and Connectors, Multiple Models
This product family includes the following HPLC Inline Filter Assemblies, Replacement Frits and Connectors configurations.
The current selector contains 46 configurations. Select the exact model and SKU required.
- 46 current selectable configurations
- Model-specific selection table
Specifications
| Product family | AM-INLINE-FILTER |
| Product type | HPLC Inline Filter Assemblies, Replacement Frits and Connectors, Multiple Models |
| Current configurations | 46 |
| Selection basis | Exact model and SKU shown below |
Available Configurations
| Available model | SKU |
|---|---|
| AMLC683 two-piece inline-filter connector, 1 pc | AM-INLINE-FILTER-01 |
| AMLC692 one-piece inline-filter connector, 1 pc | AM-INLINE-FILTER-02 |
| AMLC618 2.1 mm inline-filter assembly with 1 um frit, direct-connect analytical, 1 set | AM-INLINE-FILTER-03 |
| AMLC619 replacement frit, 1 um, for 2.1 mm / AMLC618, 2 pack | AM-INLINE-FILTER-04 |
| AMLC620 replacement frit, 2 um, for 2.1 mm / AMLC618, 2 pack | AM-INLINE-FILTER-05 |
| AMLC621 replacement frit, 5 um, for 2.1 mm / AMLC618, 2 pack | AM-INLINE-FILTER-06 |
| AMLC622 3.0 mm inline-filter assembly with 1 um frit, direct-connect analytical, 1 set | AM-INLINE-FILTER-07 |
| AMLC623 replacement frit, 1 um, for 3.0 mm / AMLC622, 2 pack | AM-INLINE-FILTER-08 |
| AMLC624 replacement frit, 2 um, for 3.0 mm / AMLC622, 2 pack | AM-INLINE-FILTER-09 |
| AMLC625 replacement frit, 5 um, for 3.0 mm / AMLC622, 2 pack | AM-INLINE-FILTER-10 |
| AMLC114 4.6 mm inline-filter assembly with 1 um frit, analytical, 1 set | AM-INLINE-FILTER-11 |
| AMLC759 4.6 mm inline-filter assembly with 1 um frit, analytical, 1 set | AM-INLINE-FILTER-12 |
| AMLC115C replacement frit, 0.5 um, for 4.6 mm / AMLC114 or AMLC759, 2 pack | AM-INLINE-FILTER-13 |
| AMLC115 replacement frit, 1 um, for 4.6 mm / AMLC114 or AMLC759, 2 pack | AM-INLINE-FILTER-14 |
| AMLC115A replacement frit, 2 um, for 4.6 mm / AMLC114 or AMLC759, 2 pack | AM-INLINE-FILTER-15 |
| AMLC590 replacement frit, 5 um, for 4.6 mm / AMLC114 or AMLC759, 2 pack | AM-INLINE-FILTER-16 |
| AMLC115B replacement frit, 20 um, for 4.6 mm / AMLC114 or AMLC759, 2 pack | AM-INLINE-FILTER-17 |
| AMLC116 10 mm inline-filter assembly with 5 um frit, preparative, 1 set | AM-INLINE-FILTER-18 |
| AMLC219B replacement frit, 0.5 um, for 10 mm / AMLC116, 2 pack | AM-INLINE-FILTER-19 |
| AMLC594 replacement frit, 1 um, for 10 mm / AMLC116, 2 pack | AM-INLINE-FILTER-20 |
| AMLC219C replacement frit, 1 um, for 10 mm / AMLC116, 2 pack | AM-INLINE-FILTER-21 |
| AMLC219A replacement frit, 2 um, for 10 mm / AMLC116, 2 pack | AM-INLINE-FILTER-22 |
| AMLC219 replacement frit, 5 um, for 10 mm / AMLC116, 2 pack | AM-INLINE-FILTER-23 |
| AMLC595 replacement frit, 10 um, for 10 mm / AMLC116, 2 pack | AM-INLINE-FILTER-24 |
| AMLC596 replacement frit, 20 um, for 10 mm / AMLC116, 2 pack | AM-INLINE-FILTER-25 |
| AMLC117 20 mm inline-filter assembly with 10 um frit, preparative, 1 set | AM-INLINE-FILTER-26 |
| AMLC597 replacement frit, 1 um, for 20 mm / AMLC117, 2 pack | AM-INLINE-FILTER-27 |
| AMLC598 replacement frit, 5 um, for 20 mm / AMLC117, 2 pack | AM-INLINE-FILTER-28 |
| AMLC220 replacement frit, 10 um, for 20 mm / AMLC117, 2 pack | AM-INLINE-FILTER-29 |
| AMLC599 replacement frit, 20 um, for 20 mm / AMLC117, 2 pack | AM-INLINE-FILTER-30 |
| AMLC600 replacement frit, 30 um, for 20 mm / AMLC117, 2 pack | AM-INLINE-FILTER-31 |
| AMLC601 replacement frit, 50 um, for 20 mm / AMLC117, 2 pack | AM-INLINE-FILTER-32 |
| AMLC118 30 mm inline-filter assembly with 20 um frit, preparative, 1 set | AM-INLINE-FILTER-33 |
| AMLC603 replacement frit, 5 um, for 30 mm / AMLC118, 2 pack | AM-INLINE-FILTER-34 |
| AMLC604 replacement frit, 10 um, for 30 mm / AMLC118, 2 pack | AM-INLINE-FILTER-35 |
| AMLC221 replacement frit, 20 um, for 30 mm / AMLC118, 2 pack | AM-INLINE-FILTER-36 |
| AMLC605 replacement frit, 30 um, for 30 mm / AMLC118, 2 pack | AM-INLINE-FILTER-37 |
| AMLC606 replacement frit, 50 um, for 30 mm / AMLC118, 2 pack | AM-INLINE-FILTER-38 |
| AMLC607 replacement frit, 100 um, for 30 mm / AMLC118, 2 pack | AM-INLINE-FILTER-39 |
| AMLC120 48 mm inline-filter assembly with 20 um frit, preparative, 1 set | AM-INLINE-FILTER-40 |
| AMLC608 replacement frit, 5 um, for 48 mm / AMLC120, 2 pack | AM-INLINE-FILTER-41 |
| AMLC609 replacement frit, 10 um, for 48 mm / AMLC120, 2 pack | AM-INLINE-FILTER-42 |
| AMLC222 replacement frit, 20 um, for 48 mm / AMLC120, 2 pack | AM-INLINE-FILTER-43 |
| AMLC610 replacement frit, 30 um, for 48 mm / AMLC120, 2 pack | AM-INLINE-FILTER-44 |
| AMLC611 replacement frit, 50 um, for 48 mm / AMLC120, 2 pack | AM-INLINE-FILTER-45 |
| AMLC612 replacement frit, 100 um, for 48 mm / AMLC120, 2 pack | AM-INLINE-FILTER-46 |
Selection Notes
Use the complete model and SKU shown in the table. Specifications not stated in the available configuration are not implied.
| size | chest(in.) | waist(in.) | hips(in.) |
|---|---|---|---|
| XS | 34-36 | 27-29 | 34.5-36.5 |
| S | 36-38 | 29-31 | 36.5-38.5 |
| M | 38-40 | 31-33 | 38.5-40.5 |
| L | 40-42 | 33-36 | 40.5-43.5 |
| XL | 42-45 | 36-40 | 43.5-47.5 |
| XXL | 45-48 | 40-44 | 47.5-51.5 |
Additional information
| Model | AMLC683 two-piece inline-filter connector, 1 pc, AMLC692 one-piece inline-filter connector, 1 pc, AMLC618 2.1 mm inline-filter assembly with 1 um frit, direct-connect analytical, 1 set, AMLC619 replacement frit, 1 um, for 2.1 mm / AMLC618, 2 pack, AMLC620 replacement frit, 2 um, for 2.1 mm / AMLC618, 2 pack, AMLC621 replacement frit, 5 um, for 2.1 mm / AMLC618, 2 pack, AMLC622 3.0 mm inline-filter assembly with 1 um frit, direct-connect analytical, 1 set, AMLC623 replacement frit, 1 um, for 3.0 mm / AMLC622, 2 pack, AMLC624 replacement frit, 2 um, for 3.0 mm / AMLC622, 2 pack, AMLC625 replacement frit, 5 um, for 3.0 mm / AMLC622, 2 pack, AMLC114 4.6 mm inline-filter assembly with 1 um frit, analytical, 1 set, AMLC759 4.6 mm inline-filter assembly with 1 um frit, analytical, 1 set, AMLC115C replacement frit, 0.5 um, for 4.6 mm / AMLC114 or AMLC759, 2 pack, AMLC115 replacement frit, 1 um, for 4.6 mm / AMLC114 or AMLC759, 2 pack, AMLC115A replacement frit, 2 um, for 4.6 mm / AMLC114 or AMLC759, 2 pack, AMLC590 replacement frit, 5 um, for 4.6 mm / AMLC114 or AMLC759, 2 pack, AMLC115B replacement frit, 20 um, for 4.6 mm / AMLC114 or AMLC759, 2 pack, AMLC116 10 mm inline-filter assembly with 5 um frit, preparative, 1 set, AMLC219B replacement frit, 0.5 um, for 10 mm / AMLC116, 2 pack, AMLC594 replacement frit, 1 um, for 10 mm / AMLC116, 2 pack, AMLC219C replacement frit, 1 um, for 10 mm / AMLC116, 2 pack, AMLC219A replacement frit, 2 um, for 10 mm / AMLC116, 2 pack, AMLC219 replacement frit, 5 um, for 10 mm / AMLC116, 2 pack, AMLC595 replacement frit, 10 um, for 10 mm / AMLC116, 2 pack, AMLC596 replacement frit, 20 um, for 10 mm / AMLC116, 2 pack, AMLC117 20 mm inline-filter assembly with 10 um frit, preparative, 1 set, AMLC597 replacement frit, 1 um, for 20 mm / AMLC117, 2 pack, AMLC598 replacement frit, 5 um, for 20 mm / AMLC117, 2 pack, AMLC220 replacement frit, 10 um, for 20 mm / AMLC117, 2 pack, AMLC599 replacement frit, 20 um, for 20 mm / AMLC117, 2 pack, AMLC600 replacement frit, 30 um, for 20 mm / AMLC117, 2 pack, AMLC601 replacement frit, 50 um, for 20 mm / AMLC117, 2 pack, AMLC118 30 mm inline-filter assembly with 20 um frit, preparative, 1 set, AMLC603 replacement frit, 5 um, for 30 mm / AMLC118, 2 pack, AMLC604 replacement frit, 10 um, for 30 mm / AMLC118, 2 pack, AMLC221 replacement frit, 20 um, for 30 mm / AMLC118, 2 pack, AMLC605 replacement frit, 30 um, for 30 mm / AMLC118, 2 pack, AMLC606 replacement frit, 50 um, for 30 mm / AMLC118, 2 pack, AMLC607 replacement frit, 100 um, for 30 mm / AMLC118, 2 pack, AMLC120 48 mm inline-filter assembly with 20 um frit, preparative, 1 set, AMLC608 replacement frit, 5 um, for 48 mm / AMLC120, 2 pack, AMLC609 replacement frit, 10 um, for 48 mm / AMLC120, 2 pack, AMLC222 replacement frit, 20 um, for 48 mm / AMLC120, 2 pack, AMLC610 replacement frit, 30 um, for 48 mm / AMLC120, 2 pack, AMLC611 replacement frit, 50 um, for 48 mm / AMLC120, 2 pack, AMLC612 replacement frit, 100 um, for 48 mm / AMLC120, 2 pack |
|---|
